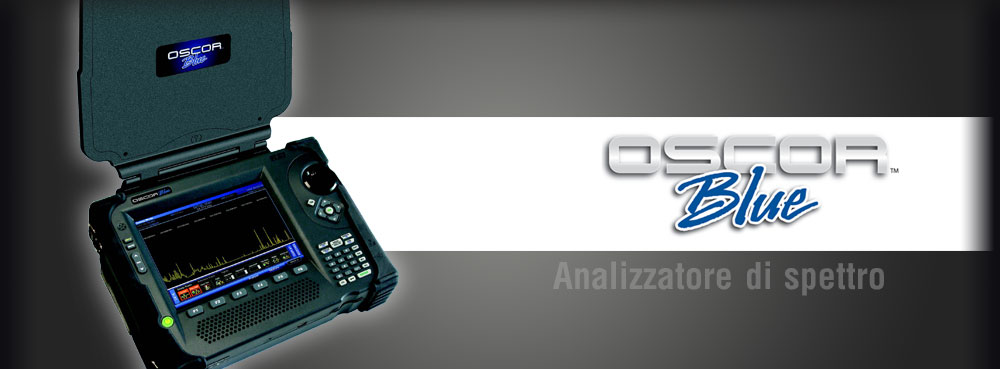

RF SYSTEM
Frequency: 24 GHz Model (OBL-24) = 10 kHz to 24 GHz
Displayed Average Noise Level (DANL) (25 kHz Resolution Band Width)
Without Preamp = -100 dBm
With Preamp = -110 dBm
Sweep Speed: 24 GHz/second
Preamp: DC-8 GHz = 10 dB
Attenuation: DC-24 GHz = 0 dB, -10 dB, -20 dB, -30 dB
Dynamic Range:
Min/Max Range: 90 dB
SFDR: 80 dB

AUDIO SYSTEM
Demodulation Types: AM, FM
Filter Sizes: 800 khz, 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
Subcarrier Filters: 6.25 kHz, 12.5 kHz, 200 kHz
Headphone Output (low leakage headphones included)
Built-in Speakers

VIDEO SYSTEM
Formats: NTSC, PAL, SECAM
Demodulation: AM, FM
Filter Sizes: 12.75 MHz, 6.375 MHz
Subcarrier Filters: 6.25 kHz, 12.5 kHz, 200 kHz

ANTENNA SYSTEM
Built-in Auto Switching Antenna System:
Frequency: 8 GHz Model (OBL-8) = 10 kHz (useable) to 8 GHz
24 GHz Model (OBL-24) = 10 kHz (useable) to 24 GHz

INPUTS/OUTPUTS
Aux RF In: 10 kHz to 8 GHz
IF Out: 25 MHz wide centered at 75 MHz
Baseband Out: DC – 6 MHz
Expansion: Aux Control Port for MPP



USER INTERFACE
Integrated Touch Screen with 8.4” Display
Soft Keys and Rotary Optical Encoder
USB Ports (A type): for peripherals (keyboard, mouse)
Ethernet Port

POWER SUPPLY
Universal Power Supply included: 100-240 VAC, 50-60 Hz
Removable Battery: Rechargeable Lithium ion, 2-3 hour runtime
EXTERNAL STORAGE CAPABILITY
Compact Flash (CF) Slot
USB-A Port

MECHANICAL
Dimensions: 11.5 in x 13.2 in x 3.0 in (29.2 cm x 33.5 cm x 7.6 cm)
Weight with Battery: 9.6 lbs (4.4 kg)
Case Dimensions: 5.5 in x 14.9 in x 19.5 in (14 cm x 37.8 cm x 49.5 cm)
Loaded Case Weight: 21.0 lbs (9.5 kg)
Operating Temperature: 0° C to +50° C



interfacciato con il software OPC istallato su un PC portatile permette un’analisi automatica e manuale di tutte le frequenze sopra citate visualizzate in “Real time” sul monitor del PC.
Inoltre il software OPC, consente di creare sul PC portatile un archivio personalizzato per ogni cliente e per ogni visita contenente tutti i dati rilevati per ogni ambiente analizzato.



Questo archivio, confrontato con i dati rilevati nelle visite successive, consente all’operatore di rilevare eventuali differenze di emissioni presenti nell’ambiente.
Grazie a questo apparato quindi, in circa 45 minuti si potrà eseguire la bonifica ambientale in un locale medio, impiegando più proficuamente ed in modo più accurato il personale preposto alle ispezioni visive; dette operazioni con Scanner manuali richiederebbero almeno 4 o 5 ore e comunque non risulterebbero mai così precise.stessa rete.

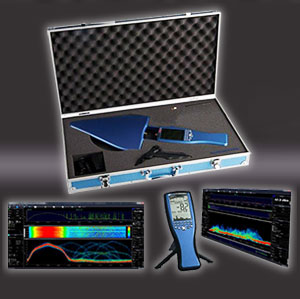

• Frequency range: 1MHz (9kHz with Option 900) to 9,4GHz
• DANL: -155dBm(1Hz)
• DANL with Preamp: -170dBm(1Hz)
• Max. power: +20dBm (opt. +40dBm)
• Lowest sample time: 1mS
• Resolution (RBW): 200Hz to 50MHz



• EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
• Units: dBm, dBµV, V/m, A/m, W/m²
(dBµV/m, W/cm² etc. via PC software)
• Detectors: RMS, Min/Max
• Demodulator: AM, FM, PM, GSM
• Input: 50 Ohm SMA RF-input (f)
• Accuracy: +/- 1dB (typ.)
• Interface: USB 2.0/1.1
• Dimensions (L/W/D): 250x86x27 mm
• Weight: 430gr

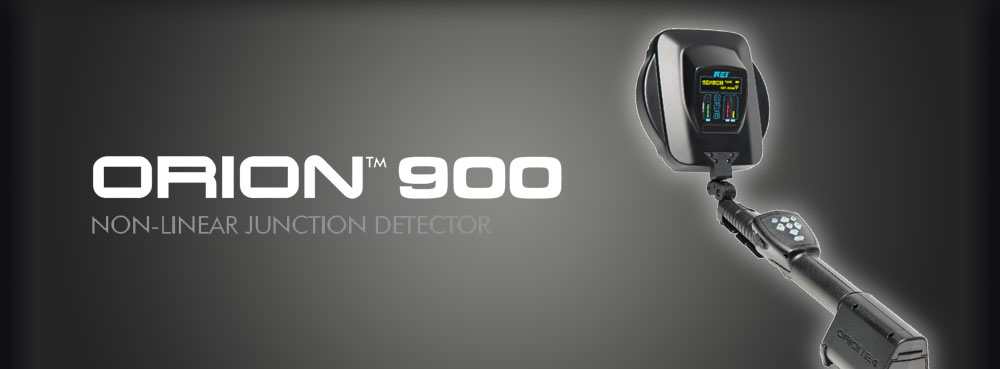

TRANSMITTER
Frequency Bands: 840 MHz - 960 MHz
Transmit Channels: Manual or auto selection
Transmit Power: 3.3 watts EIRP
Power Control: Manual or auto control
Transmit Modulation: Digital 1.25 MHz BW

RECEIVER
Simultaneous 2nd & 3rd harmonic receive
Digitally Correlated
Frequency Bands:
Second Harmonic (1680 MHz - 1920 MHz);
Third Harmonic (2520 MHz - 2880 MHz)
Sensitivity: -140 dBm for both harmonics



DISPLAY
Antenna-mounted Display
Bar Graph Display for transmit power level, 2nd harmonic level, 3rd harmonic
level, data field display, for other information (operation mode, low battery, volume,
DSP gain, etc.)

MECHANICAL
Extension Lengths: 16-51 in (40.6-129.5 cm)
Case Dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ORION 900 Dim: 23 in x 3.75 in x 3 in (58.4 cm x 9cm x 7.5 cm)
Overall Extended Length: 58 in (147 cm)
ORION 900 Weight with Battery: 3.6 lbs (1.6 kg)
Case Weight Including ORION & Accessories: 12.6 lbs (5.7 kg)

BATTERY
Input AC: 100–240 V, 50–60 Hz
Charge Time: 2.5 hours per battery
Batteries: Lithium Ion Rechargeable (2 included)

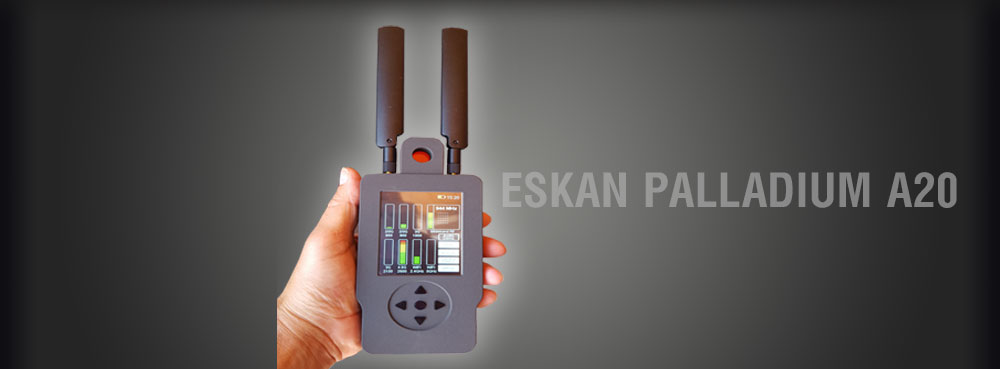

Some of the important new features built into Palladium A20 are listed below:
• Mobile phone, wi-fi and bluetooth detection
• Distance from bugging device identifier
• Hidden camera optics detection
• Full graphical display on high resolution TFT screen
• Detection at 100 metres



• Frequency detection from 10 khz to 6 ghz.
• Instant switching between “lock to strongest” and manual modes without losing the tuning point
• Built-In filter to exclude harmonics
• Auto or manual demodulation
• Extensive recording and archiving
• Frequency band selector
• Sensitivity and volume controls
• Tone or vibration Alert
• Mains and battery operation
• Future expandability through software updates




è un rilevatore di giunzioni non lineari. Funziona sul principio del radar armonico.
Questo apparecchio è utilizzato per rilevare i mezzi d’intercettazione attivabili da remoto e comunque non attivi al momento dell’operazione di bonifica.

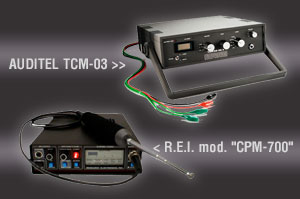

AUDITEL TCM-03 CABLE CHECKER
Utilizzato per rilevare lungo i cavi la presenza di microfoni o microspie

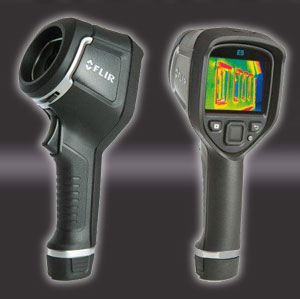

FLIR E5 Termocamera 120x90 pixels, immagine IR, visibile, MSX

Risoluzione immagine termica: 120 x 90 pixels
Intervallo di temperatura: da -20°C a +250°C
Sensibilità termica: 0,10°C
Risoluzione MSX: 320 x 240 pixels
Risoluzione spaziale: 6.9 mrad
Modalità immagine: Immagine IR, immagine nel visibile, MSX, galleria miniature
Allarme colore: NO
Messa a fuoco: fissa
Display: LCD 3" a colori 320x240
